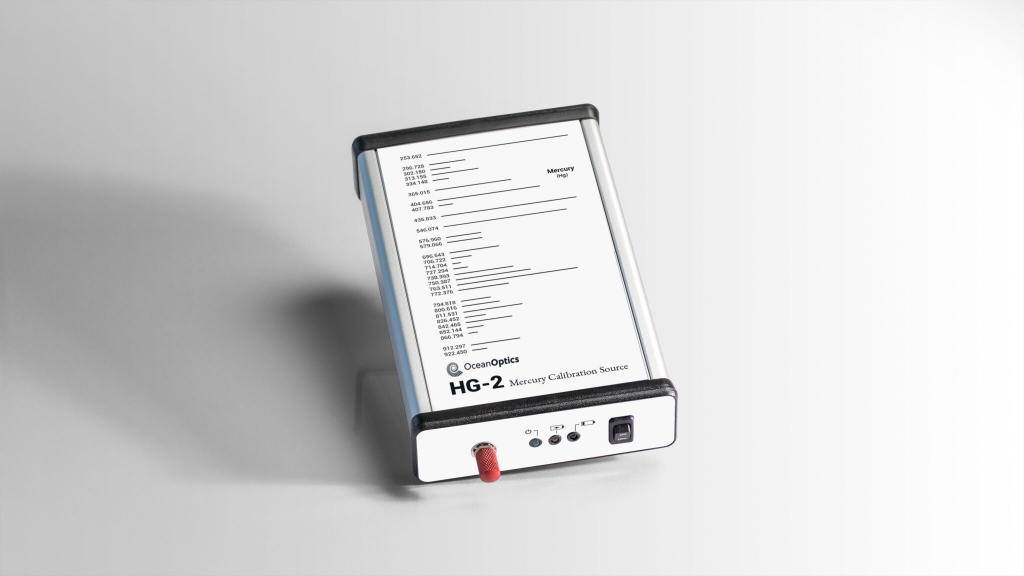

Ocean Optics(Ocean Insight) HG-2 Specifications
| Dimensions: |
16.7 x 10.6 x 3.4 cm (without feet) |
| Weight: |
180 g |
| Power consumption: |
2A (maximum) at 5 VDC when battery is charging |
| Power requirements: |
5 VDC power supply; rechargeable, embedded lithium ion battery |
| Bulb life: |
3,500 hours (typical) |
| Aperture: |
3 mm |
| Amplitude stabilization: |
~1 minute |
| Optical connector: |
SMA 905 |
Strong Mercury Emission Lines (nm)
| 253.652 |
404.656 |
| 296.728 |
407.783* |
| 302.150 |
435.833 |
| 313.155 |
546.074** |
| 334.148 |
576.960 |
| 365.015 |
579.066 |
* This spectral line will not be evident with spectrometers configured with 300- or 600-lines/mm gratings.
** With spectrometers that have 1200-, 1800-, 2400- or 3600-lines/mm gratings, spectral lines will be evident at 576.96 nm and 579.07 nm.
Strong Argon Emission Lines (nm)
| 696.543 |
800.616* |
| 706.722 |
811.531 |
| 714.704 |
826.452 |
| 727.294 |
842.465 |
| 738.398 |
852.144 |
| 750.387 |
866.794 |
| 763.511 |
912.297 |
| 772.376 |
922.450 |
* This spectral line will be evident only with spectrometers configured with 1800-, 2400-, or 3600-lines/mm gratings.
